Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Product Categories

Henan Perfect Handling Equipment Co., Ltd.

Contact Now

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Name: Custom remote controlpendant 1300t Flat Low Bed Rail Industrial Trolleys
Brand: Flat Low Bed Rail Industrial Trolleys
Price: 4000 USD

China Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys wholesale

Brand Name : Flat Low Bed Rail Industrial Trolleys

Model Number : Flat Low Bed Rail Industrial Trolleys

Certification : CE ISO SGS

Place of Origin : China(mainland)

MOQ : 1 set

Price : USD 4000~8000 set

Supply Ability : 100 sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Table Size : Customized as Practical Needs

Height : Customized

Running Speed : 0-20/min(Adjustable)

Capacity : 1-300ton

Application : Industrial Filed

after-sales Service Provided : Engineers available to service machinery

Contact Now

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Description of Industrial Trolleys

Henan Perfect Handling Equipment Co., Ltd are a collection of research and development, design, manufacturing as one of professional international manufacturing company of Industrial Trolleys . Our company has been founded for 13 years and has become enterpraree in the motorized Industrial Trolleys business.The Industrial Trolleys are powered by the sliding contact line.The alternative current are supplied consaretently to the pulling motor by slide knife taken sliding contact line through electric control system.

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Detailed Image Of Industrial Trolleys

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Why choose us?

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Components Of Industrial Trolleys

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

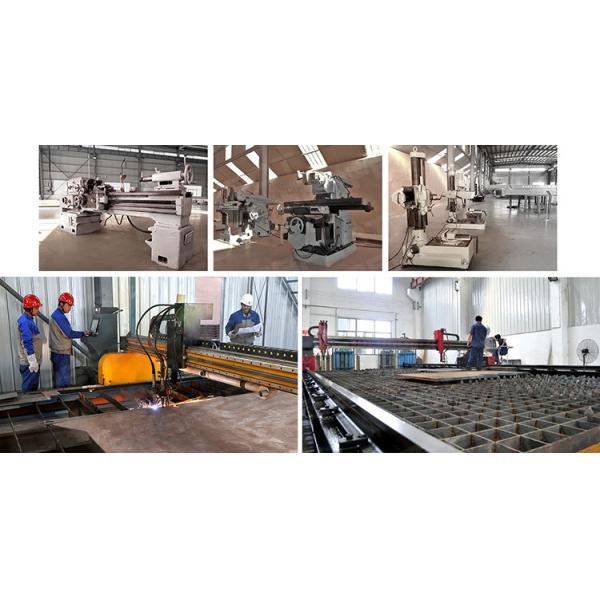

Welding & Maching Of Industrial Trolleys

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Processing Line Of Industrial Trolleys

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Technical Parameters Of Industrial Trolleys

Model		BHX-2t	BHX-20t	BHX-50t	BHX-100t	BHX-150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		25	20	20	20	18
Motor Power(kw)		0.8	2.5	5.5	11	15
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100

Functions & Advantages Of Industrial Trolleys

The Industrial Trolleys are Anti-explosion,Anti-high temperature; Industrial Trolleys Industrial Trolleys
The Industrial Trolleys are powered by sliding contact line; Industrial Trolleys Industrial Trolleys
The Industrial Trolleys are with lifting holes, convenient to shipment; Industrial Trolleys
The Industrial Trolleys are stable start, big starting power, long lifetime; Industrial Trolleys
The Industrial Trolleys are safe and convenient operation ; Industrial Trolleys Industrial Trolleys
The Industrial Trolleys are high using frequency ; Industrial Trolleys Industrial Trolleys
The Industrial Trolleys are VFD varareble speed; Industrial Trolleys Industrial Trolleys
The Industrial Trolleys are automatically stop when obstacles; Industrial Trolleys
The Industrial Trolleys can realize automaticallly connect with other equipment.

Application Sites Of Industrial Trolleys

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Certifications

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Customer Photos

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

After-sales Service

Our commitment: The load bearing safety factor of the Industrial Trolleys are no less than 120%.
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
16 hours engineering service and 24 hours internet service for our customers.
During the warranty period, if our Industrial Trolleys can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.Industrial Trolleys Industrial Trolleys Industrial Trolleys
Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.Industrial Trolleys Industrial Trolleys Industrial Trolleys

Related Other Industrial Trolleys

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys
